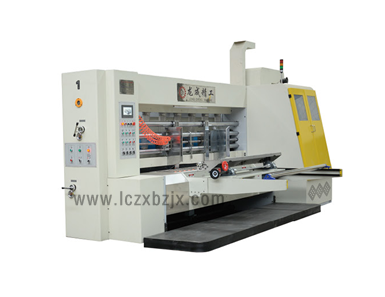

整机性能特点:
1.整台机器严格按照欧盟CE安全标准设计,具有规范化、通用化、人性化。依据人机一体化制造理念,能直接在触模屏上进行设定、修正、执行、更换、记忆等功能,是一款具有超高性
价比产品。
2.触摸屏人机界面对话和电动控制双系统操作功能,具有智能化归零、记忆自动复位、存储订单等功能;可选配远程跟踪服务系统。
3.人机界面显示器、PLC控制器、变频器、伺服驱动器,均选用德国西门子、德国博世力士乐、日本安川等世界知名品牌。
4.主传动齿轮采用(20CrMnTi)优质合金钢,经程控自动渗碳淬火、磨削加工处理后,保证齿面硬度均匀一致,达到六级标准精度其齿面硬度(HRC58-62)。
5.所有辊、轴类内孔均进行切削加工,保证壁厚均匀一致、确保高速运转时平稳可靠;在加工过程中,经过多次调质处理消除应力变化,通过磨削加工后表面进行镀层保护。
6.应用免键连接器,消除传统连接所产生的间隙,保持机器印刷套色长期精准。
7.传动润滑机构采用喷淋式防减装置;润滑系统自动循环,并装置防渗漏油机构。
8.可选配密封腔双刮刀系统;可加装红外线烘干机构。
1.This machino is out m CE acondanco wih siandand, t s sandandtisd, ganeralzalion. humankealion. Mmn-machne nlegalod,acconrding to he mandacturn of mold diocly intouch, set, amendment, execution, replacing, memory, it' s a economic machinery.
2.Screen,PLC,transtormer, servo motor use SIEMENS, Bosch, Yaskawa.
3.Transmission gears are made of high-quality alloy steel 20CrMnTi, the Rockwell hardness of the gears can get to HRC58-625. All roller and axle are conducted in a cutting machine,ensure thickness accordant ,steady when high speed work; After many attempts to deal with the stress quality, by grinding the surtace processed on the protection when machining.
4.Apply the joining with non-keypiece so as to decrease the connection gap and long term register accuracy.
5.Driven by the institutions in the rain splashed against the device; lubrication systems automatically, install avert leaking oil sector.
6.Can choose chambered blade system, IR drying ,UV vamish.
规格 | 1800/2200*1000 | 2500*1200/1400/1600 | 2800*1200/1400/1600 |
机器最高速度(pcs/min) | 120 | 120 | 120 |
最大进纸尺寸(mm) | 1760/2160*970 | 2500*1170/1370/1570 | 2800*1170/1370/1570 |
隔张送纸尺寸(mm) | 1760/2160*1170 | 2500*1370/1570/1770 | 2800*1370/1570/1770 |
最小进纸尺寸(推板送纸、前缘送纸)(mm) | 650*280 | 650*350/380/430 | 700*350/380/430 |
最小进纸尺寸(免压送纸)(mm) | 650*400 | 650*450 | 650*450 |
最大印刷面积(mm) | 1750/2150*950 | 2450*1150/1350/1550 | 2750*1150/1350/1550 |
标准印版厚度(mm) | 7.2 | 7.2 | 7.2 |
进纸厚度范围(mm) | 2.5-10 | 2.5-10 | 2.5-10 |
最小开精间距(mm) | 120*120*120*120 | 140*140*140*140 | 140*140*140*140 |
最大模切面积(mm) | 1700/2100*880 | 2400*1080/1280/1480 | 2700*1080/1280/1480 |
送纸部功能:
1.机械控制前缘进纸机构,具有响应速度快、定位精度高、系统稳定好、使用寿命长等特点,保证了机器长期使用稳定性(可选伺服)。
2.用电子凸轮替代复杂的机械凸轮控制,输纸轮轴与电机轴采用同步带连接,消除了送纸轮工作中的所有间隙,有效提高送纸精准度,并可避免纸板左右跑偏现象。
3.真空吸辅风量变频调节;设置连续输送和隔张送纸功能;设置上吸尘除屑机构,并可自动进行风量调整。
4.采用独特的快换式半轮结构,使进纸轮圆面磨损均匀一致,保证送纸位置的长期一致性;更换胶轮时只须直接卸装,方便、快捷减少辅助时间,使机器使用更安全、经济。
5.可设定订单数量,完成后自动停止进纸输送;左右挡板、后挡板工作位置电动调整,自动侧齐纸工作频率可任意设置;能实现同自动上料机之间联动工作。
6.传送纸胶辊前、后双轴构造,保证走纸准确一致性;胶层为内软外硬结合型,具有良好的伸展性和耐磨性。
1.Mechanical control leading edge feeding mechanism, with fast response speed, high posilioning accuracy, good system stablity,long service life and other characteristics, to ensure the machine long-term stabilty (optional servo).
2.With
the cam replace the complex machinery of the cams control, feed axle
and motor axle use synchronous drving belt inkage,elirinate gap when
feeder wheel working, effectively improve feed accuracy, aver paper
indine to left and right side.
3.Vacuum suction, can choose continuation feeder and skip feeder; install vacuum cleaner, and can adjust fan.
4.The speclal half wheel structure and quick change,let leeder wheel surtace the tray accord; change resinic wheel easy and qulckly.decrease adjust time, can user machine easy and economy.
5.Can set order,stop feeder when accomplish work; left and right - baffle,kack-baffie position electric adjustment, the side of thefrequency of thelr work can be set, achieve linkage work with automatic teeder.
6.Front and back rubber roller for teeder double roller structure, ensure correct in the paper .glue to the outside is solt and hard with agood stretch.
印刷部功能:
1.触摸屏、电动按钮双系统控制印刷相位、轴向位置;印版辊具有擦版记忆自动复位功能。
2.操作部设置墨辊及墨泵启、停功能;每色组设置急停保护开关。
3.网纹辊送纸部联动升降工作,着墨时同印版间隙电动调整;印版辊同走纸吸风箱压力电动调整,并可以分别调整风量设定。
4.胶辊匀墨系统采用新型工艺,在确保实地印刷同时兼容六十线以上的高网点印刷。
5.可选配密封腔双刮刀匀墨机构,采用整体型匀墨防渗柴置,避免工作时油墨外滥;其特殊割刀角度让匀墨转移更理想,可轻松实现100线网点印刷,并可延长割刀和网纹辊的使用寿命。
6.印刷相位附电磁离合器制动机构,机台分离时可自动锁住齿轮位置,防止印版辊零位丢失。
7.印版部装置电动脚踩开关,可快速挂版、调整,方便换版和擦洗工作。
1.Double system of touch screen and electric button control, can conirol print phase and axis position; print plate roller can memory and reset.
2.Operation face-plate selting ink roller and ink pump run or stop; every unit have emergency stop switch.3.Anilox
roller linkage lift of feeder unit, print plate gap electric adjust
when inking; print plate roller gap electric adjust ,and can adjust tan.
4.Rubber roller ink spilover system use new technics, not only tlat color printing ,but also 60 line printing.5.Can choose chambered blade , use installations that ink distibution avert leak for whole , prevent ink spillover good, Achieve 100 line printingeasy ,increase service life of blade and arilox roller.
6.Print phase use electromagnetic clutch brake mechanism, when set separate can automatically lock the gear that can print plate position reset.
7.Install electnic foot switch, can plate loading and adqust qulickly ,easy to change and clean print plate.
开槽部功能:
1.人机界面和电动按钮调整双系统操作,可完成开精箱高、相位、轴向移动调整。
2.配置自锁功能预压快调机构,保证了盘、轴之间长期精度,压线时或缓了对纸板的破坏。
3.包裹了忧质聚氮脂的压线上轮,保证了纸板硬度免遭破坏。
4.设置同步联动电动轴向移动,使上下压线轮、上下开槽刀盘、导向轮同步进行凋整;自润耐磨导向机构,保证了移位长期正确和提高耐用度。
5.压线轮轴、开槽轮轴选用优质合金钢,经表面研磨加工后镀硬铬处理;分别经过粗、精两台动平衡设备上进行校正,保证找到最佳平衡点。
6.选用优质合金钢开槽刀,齿形刀刃宽度为7mm。
1.Double system of touch screen and ehectric button control ,can completed at the box,phase, the axis moves.
2.Configuration pressure quick adjust mechanism ,and can sell-ocking, ensure the plate and roller long-term precision, slow downdamage to cardboard when groove.
3.Up-groove wheel parcel the quallity polyurethane ,avoid cardboard hardness undermine.
4.Setings synchronous manner unified action by the axis moves , let up and down groove wheel ,up and down slot knile plate,oriented wheel adjust synchronous; Automatic wear-resistant mechanism, ensure long-term corect when moves and ralse durablity.
5.Groove
wheel and roler , slot wheel and roller use qually alloy steel
products, surface grinding and hard chrome plating ; to movetheir
respective balance.
6.Slotter knife use qualy alloy steel products, the width is 7mm.
